Welded Mesh

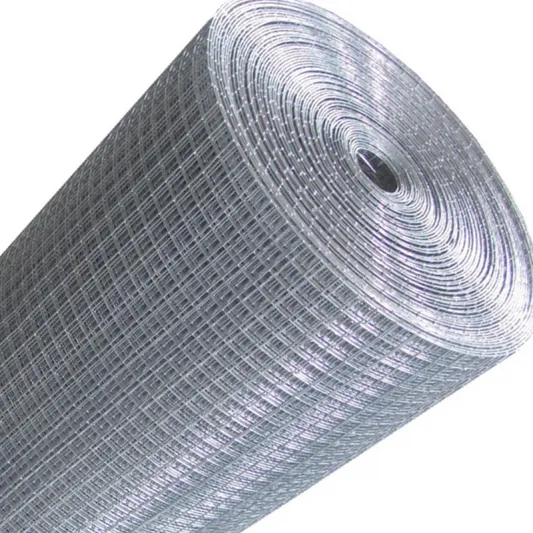

Galvanized Welded Wire Mesh

Galvanized Welded Wire Mesh have a square or rectangular grid, and it is welded at each joint.

Description

Galvanised Weld Mesh Panels

Galvanised wire mesh panels are manufactured by welding thick diameter steel wires to form a rectangular or square mesh hole. The weld mesh panel is then hot-dip galvanized which protects the steel from rust corrosion and gives the panels its silver / zinc coloured appearance. Galvanised wire mesh panels are used for security cages, aviaries, garden fences, garden screening, dog fencing, leaf covers for ponds, vegetable frames and around machinery in factories and production areas for health and safety.

Features and benefits

Galvanised wire mesh panels for the garden, allotment and construction

Made from hot-dipped galvanised steel wire for long-lasting, corrosion-resistant performance

Versatile panels ideal for security fencing, animal fencing, climbing plant support, leaf protection for ponds and fruit cages

Also available in Premium Galvanised and PVC-Coated finishes to suit different needs

Further information

Galvanised wire mesh panels are made from hot-dipped galvanised steel to offer long-lasting shielding from corrosion and rust.  Available in a wide range of sizes, apertures and thicknesses, these wire mesh panels are highly versatile making them a popular choice for the garden, allotments and construction sites.

Typical uses for galvanised wire mesh panels include:

Security fencing

Pet cages and animal enclosures

Aviaries and bird cages

Pond covers and leaf protection

Garden fencing

Metal fencing

Chicken coops

Dog fencing

Security cages

Pet hutches

Climbing plant support

Galvanized Welded Wire Mesh

FAQ

What is a mesh panel?

Wire mesh panels refers to metal wires that are linked to one another by welding to form a mesh panel that is used for security fencing, animal enclosures, pond covers and garden fencing.


What is the purpose of wire mesh?

The main purpose of wire mesh is to separate, screen or shield certain areas, to add structure, such as for retaining walls, or to safely contain animals.


What is the standard size of wire mesh?

Our wire mesh panels are available in sizes 6ft x 3ft and 8ft x 4ft, in a range of gauges and hole sizes to suit varying needs.  For example, a smaller mesh size of 25mm would be better suited to containing small animals, whereas 50mm would be suitable for containing larger animals.



parameter

Specification

Construction Material: Steel

Finish: Galvanised

Panel Sizes:  6ft x 3ft or 8ft x 4ft

Gauges: 6G, 10G or 12G

Aperture/Hole Sizes: 25mm x 25mm, 50mm x 50mm, 25mm x 75mm

Mesh Aperture
(inch)
Mesh Aperture
(mm)
Wire Gauge
(BWG)
1/4" x 1/4"6.4 x 6.422,23,24
3/8" x 3/8"10.6 x 10.619,20,21,22
1/2" x 1/2"12.7 x 12.716,17,18,19,20,21,22,23
5/8" x 5/8"16 x 1618,19,20,21,
3/4" x 3/4"19.1 x 19.116,17,18,19,20,21
1" x 1/2"25.4 x 12.716,17,18,19,20,21
1-1/2" x 1-1/2"38 x 3814,15,16,17,18,19
1" x 2"25.4 x 50.814,15,16
2" x 2"50.8 x 50.812,13,14,15,16
Tags: Welded Mesh

We can customized stainless steel wire mesh products
by your drawing and requirements

Our factory was established in 2008, it is now developed into a focus on production, development and sales of stainless steel wire mesh as one of modern science and technology enterprises
