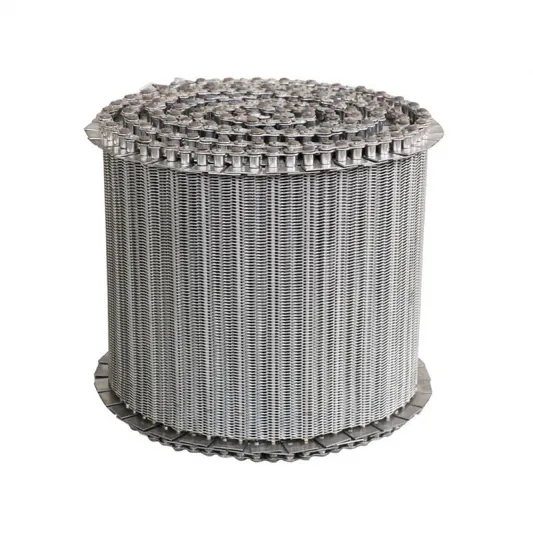

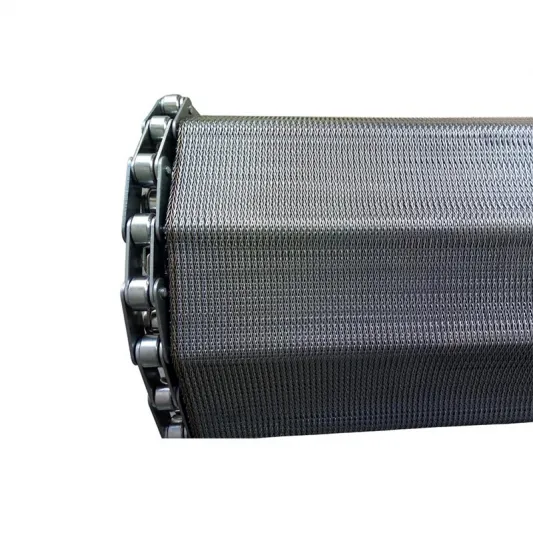

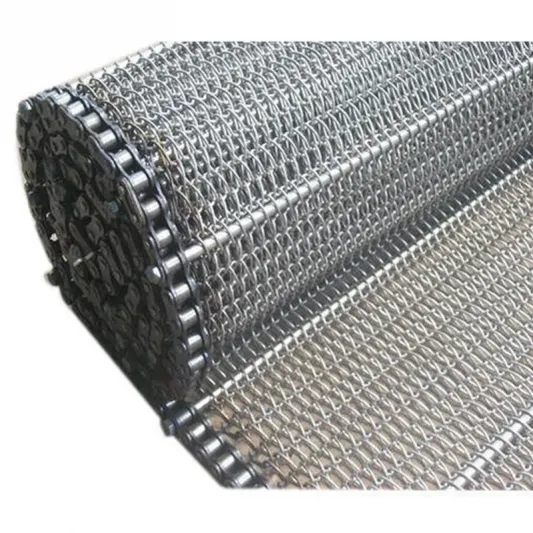

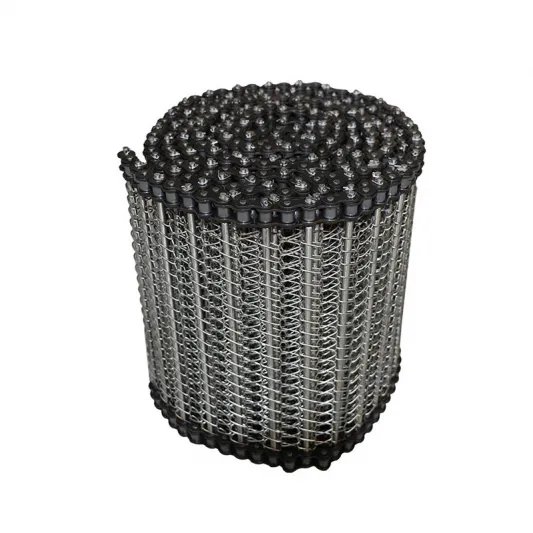

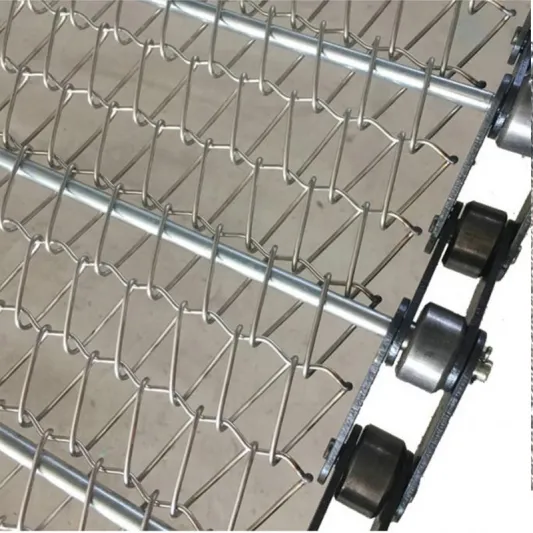

Stainless Steel Conveyor Belt

Stainless Steel Conveyor Belt

Stainless Steel Conveyor Belts are intended to be used for handling various abrasive materials with high ease and safety. These conveyor belts can easily bear a great amount of load and have superior impact strength.

Description

Stainless Mesh Conveyor Belt

A stainless mesh conveyor belt is a type of conveyor belt that is made of interlocking stainless steel mesh pieces. It is commonly used in industrial settings for conveying products or materials that require a high level of stability and durability during transportation. The stainless steel material makes it resistant to corrosion and wear and tear, making it ideal for use in harsh environments such as in the food processing industry or in manufacturing plants.

Stainless mesh conveyor belts come in various configurations and sizes, depending on the specific needs of the application. They can be customized to fit any conveyor system, and they are available in a range of wire diameters, mesh patterns, and belt thicknesses to suit various conveying requirements. Some of the key benefits of using a stainless mesh conveyor belt include its high strength and durability, resistance to extreme temperatures and chemicals, and ease of cleaning and maintenance.

Stainless Steel Conveyor Belt

Features:

Material: Stainless mesh conveyor belts are made from high-quality stainless steel, which makes them highly durable and resistant to corrosion, rust, and wear and tear.

Mesh Design: The mesh pattern of a stainless mesh conveyor belt can vary depending on the application. It can be an open weave or a tightly woven pattern, depending on the size and type of material being transported.

Strength: Stainless mesh conveyor belts have high tensile strength and are capable of withstanding heavy loads without stretching or breaking.

Temperature Resistance: Stainless mesh conveyor belts can withstand high temperatures without warping or melting, making them suitable for use in high-temperature environments.

Hygienic: Stainless mesh conveyor belts are easy to clean and maintain, making them suitable for use in industries where hygiene is critical, such as the food or pharmaceutical industries.

Customizable: Stainless mesh conveyor belts can be customized to fit specific applications, with different wire diameters, mesh patterns, and belt thicknesses available.

Noise Reduction: The interlocking mesh design of the conveyor belt can help to reduce noise levels in the workplace, making it a more comfortable environment for workers.

Application:

● Food baking, cooling and freezing.

● Chemical industry.

● Sieving.

● Sorting.

● Washing.

● Drying.

● Drainage.

● Annealing.

● Cooking.

● Heating.

● Cladding.

● Blanching.

● Washing.

● Frying.

● Loading.


Stainless Steel Conveyor Belt


parameter

MaterialSUS 201 304 316
Wire diameter1 to 3 mm
Rod diameter4 to 12 mm
Spiral wire pitch3 to 20 mm
Chain pitch19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width0.2m to 4m
Rod pitch5 to 30 mm

We can customized stainless steel wire mesh products
by your drawing and requirements

Our factory was established in 2008, it is now developed into a focus on production, development and sales of stainless steel wire mesh as one of modern science and technology enterprises
