Stainless Steel Wire Mesh

Stainless Steel Square Woven Mesh

Stainless Steel Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; “Tensile Bolt”Bolting Cloth; Crimped Mesh and Welded Mesh.


Description

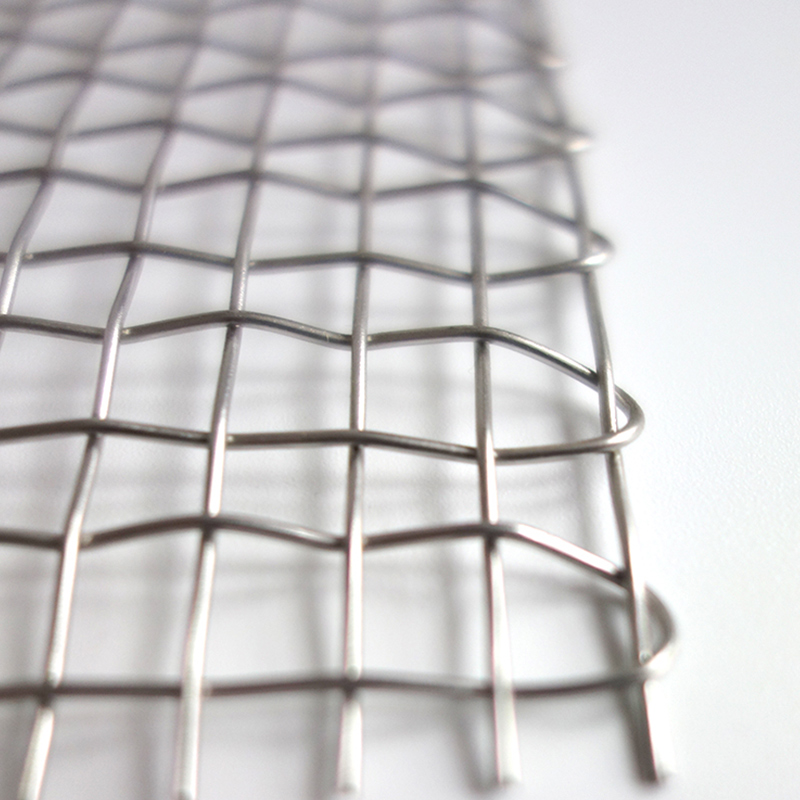

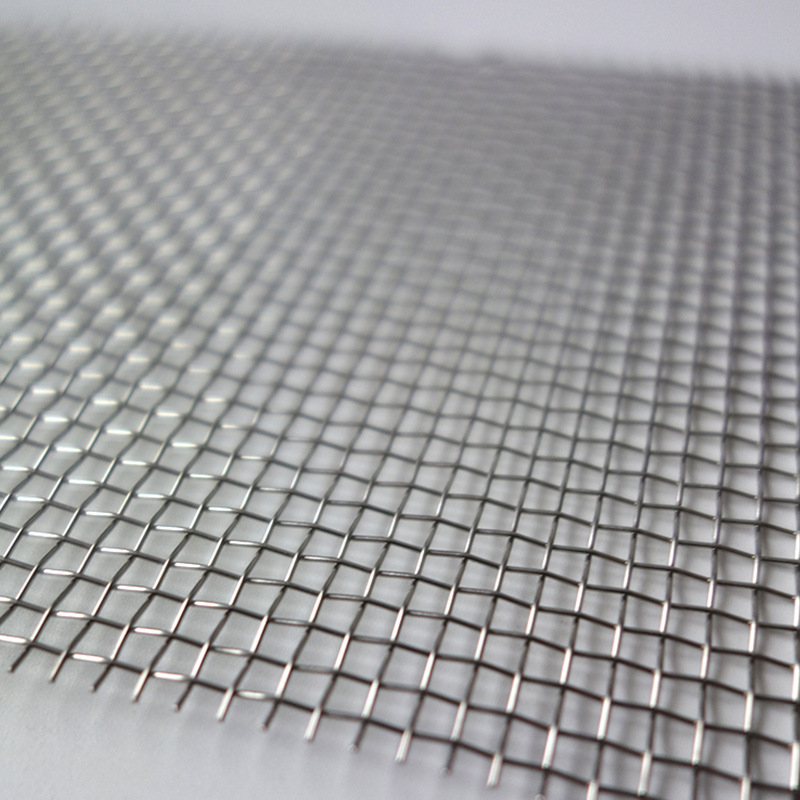

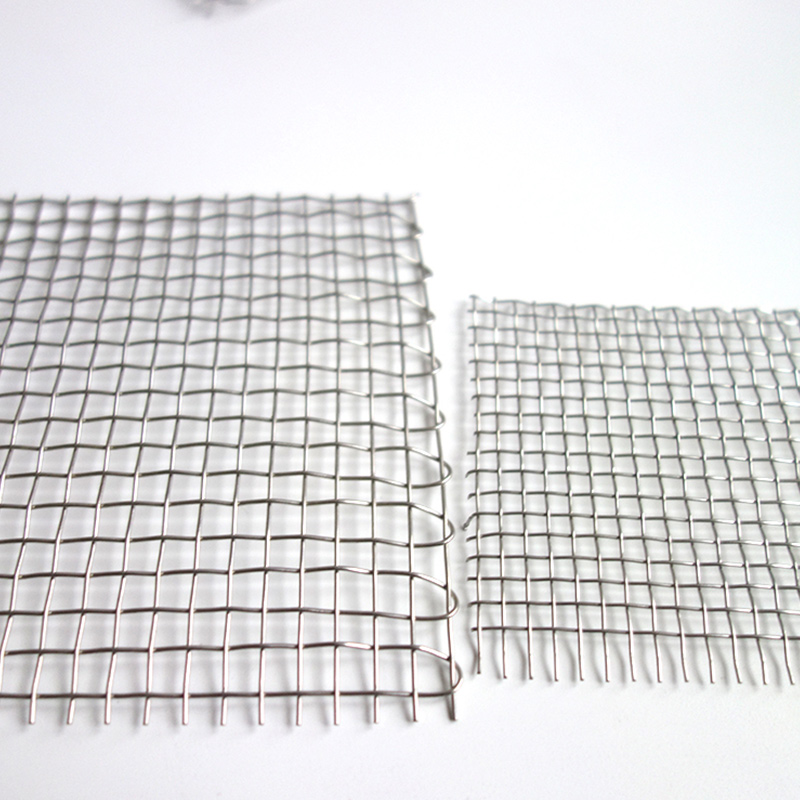

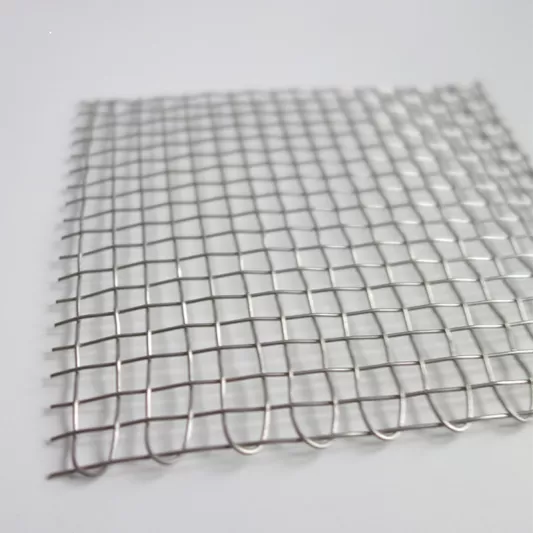

Square Weave Wire Mesh

Consists of a variety of crimp patterns for interlocking segments. This square weave wire mesh creates a strong, reliable product by requiring the wires to be precisely aligned up and down before being crimped into place. The high-precision manufacturing process makes woven wire cloth more labor-intensive to produce, so it is often more expensive than welded wire mesh.

Huanji is the leading distributor and fabricator of square weave wire mesh due to our dedication to providing the best product at the best value. Our skilled fabricators will customize to your exact specs. We carry a large diverse stock of woven wire sizes, diameters, patterns, and it can be pre-crimped for added stability.

Square weave wire mesh is so versatile it has the strength for industrial applications and is aesthetically appealing for architectural uses. Aluminum and stainless steel woven wire are the most common materials, but there are more to choose from.

All the square weave wire mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.


Raw material Grade: 304, 304L, 316, 316L, 430, 2205, 2207 etc.

Stainless Steel Square Woven Mesh

Customized square weave wire mesh solutions available

If you can't find the right Woven Metal Wire Mesh product in our vast inventory, let us know. We have become one of the square weave wire mesh suppliers in China because we are willing to work with our customers to provide the perfect product for their needs.

We will assist you in evaluating all the factors involved in the decision-making process. These include determining the ideal mesh size (the diameter of the mesh), the number of mesh holes (the number of filaments per linear inch), and the type of weave (which will affect the mesh's filtration capacity). You will be able to move forward with your project with confidence.


parameter

Plain /Twill square weave wire mesh
Mesh countWire DiaWidth of OpeningOpen area
InchesmmInchesmm%
60X600.00750.1910.00920.2330.5
70X700.00650.1650.00780.229.8
80X800.00550.140.0070.1831.4
100X1000.00450.1140.00550.1430.3
120X1200.00370.0940.00460.116830.7
150X1500.0260.0660.00410.104137.4
180X1800.0230.05840.00330.083834.7
200X2000.00210.05330.00290.073733.6
250X2500.00160.4060.00240.06136
300X3000.00150.03810.00180.045729.7
325X3250.00140.03560.00170.043230
400X4000.0010.02540.00150.03736
500X5000.0010.02540.0010.025425
635X6350.00080.02030.00080.020325

We can customized stainless steel wire mesh products
by your drawing and requirements

Our factory was established in 2008, it is now developed into a focus on production, development and sales of stainless steel wire mesh as one of modern science and technology enterprises
