Stainless Steel Wire Mesh

Stainless Steel Dutch Wire Mesh

Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries.

Description

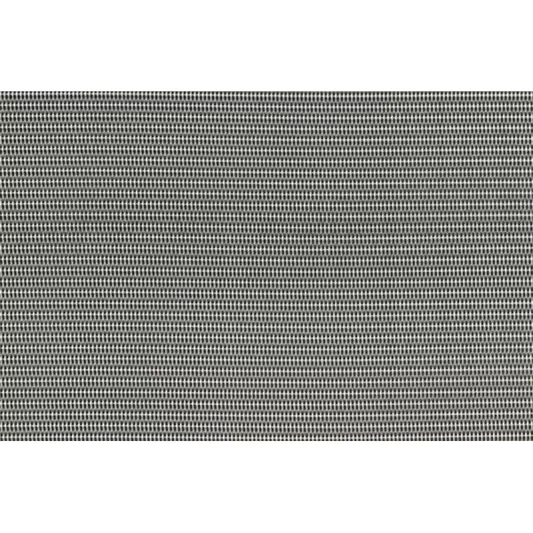

Dutch Wire Mesh

The plain Dutch weave is a type of weave with larger warp wires than the weft wires.

The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby producing a stable and strong cloth. The plain Dutch weave has a high filtering level and high pressure load resistance.

Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries.

Stainless steel is resistant to heat, acid, corrosion and wear. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine, etc., mainly used for gas, liquid filtration and other media separation.

Advantages of Dutch wire mesh:

Superior filtration precision: Dutch wire mesh has a high level of filtration precision due to its unique weave pattern. It consists of tightly woven wires in the weft direction and a coarser mesh in the warp direction. This creates a dense filter structure that effectively captures and retains fine particles, making it ideal for applications requiring precise filtration.

Excellent strength and stability: Dutch wire mesh is known for its high tensile strength and stability. The wires are tightly woven and interlocked, providing durability and resistance to mechanical stress. This makes it suitable for applications where strength and stability are crucial, such as in industrial filtration systems or as support for heavy loads.

Enhanced flow control: The Dutch weave pattern of the mesh allows for controlled and uniform flow of liquids or gases. It offers excellent flow resistance and distribution, making it suitable for applications such as flow control screens, diffusers, and fluidized beds.

Resistance to clogging: The Dutch weave structure, with its larger warp wires and smaller weft wires, reduces the likelihood of clogging or blinding of the mesh. This allows for continuous and efficient filtration, even when dealing with materials that tend to cause blockages in other types of mesh.

Improved durability and longevity: Dutch wire mesh is typically made from high-quality stainless steel or other corrosion-resistant materials. This provides excellent resistance to corrosion, abrasion, and chemical attack, resulting in a longer lifespan and reduced maintenance requirements.

Wide range of mesh options: Dutch wire mesh is available in various mesh sizes and configurations to suit different filtration requirements. It offers flexibility in terms of aperture size, wire diameter, and mesh thickness, allowing for customization to specific applications.

Versatility in applications: Due to its precise filtration capabilities and durability, Dutch wire mesh finds applications in a wide range of industries. It is commonly used in areas such as oil and gas, petrochemical, pharmaceutical, food and beverage, water treatment, and many more.


Weave Style:

Stainless Steel Dutch Wire Mesh

Stainless Steel Dutch Wire Mesh Applications:

Plain Dutch and Twill Dutch and particular RDT mesh are normally used in the applications of Water well treatment and sand control system.

Fine Dutch Weave Mesh as finer absolute filtration layer of sintered mesh and accurate chemical filtration, with max width 3m.which is outstanding performance in China woven mesh industry.

parameter

Specification

Mesh/Inch (warpXweft)Wire Dia.warpXweft(mm)Normal size (um)Effective area%Cloth thicknes(mm) Weight (kg/sq.m)
7×140.71×0.6332014.21.975.24
8×600.63×0.4530020.41.534.04
8×850.35×0.3227027.30.932.51
10×900.45×0.2825029.20.982.57
10×760.50×0.3424521.81.23.16
12×860.45×0.3121520.61.062.86
12×640.56×0.40210161.363.89
12×760.45×0.3519015.91.163.26
14×1000.40×0.2818520.30.962.56
14×880.50×0.30180231.12.85
14×1100.35×0.2517522.20.852.28
16×1000.40×0.2816017.60.962.64
16×1200.28×0.2214519.20.721.97
20×1400.315×0.2013021.50.711.97
20×1500.25×0.18125270.591.53
25×1400.28×0.2010015.20.681.92
24×1100.36×0.2590130.852.4
30×1500.25×0.188013.60.61.68
35×1700.22×0.167012.80.541.58
40×2000.18×0.1460150.461.4
50×2500.14×0.1150160.360.99
60×3000.14×0.094014.10.320.96

We can customized stainless steel wire mesh products
by your drawing and requirements

Our factory was established in 2008, it is now developed into a focus on production, development and sales of stainless steel wire mesh as one of modern science and technology enterprises
