Stainless Steel Wire Mesh

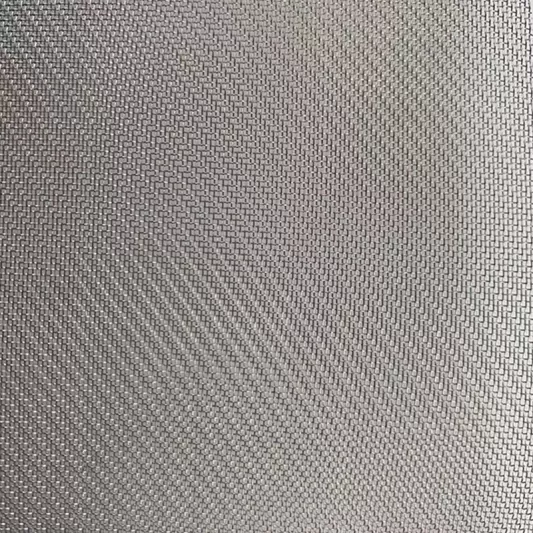

Stainless Steel Twill Weave Steel Mesh

Twill Dutch Weave Wire Mesh is like Plain Dutch Weave Mesh, except that the weave pattern is twilled, with a double layer of weft wires. The apertures size is too less in the true sense, and the filtrate follows a sinuous path through the depth of the wire cloth.

Description

Twill Woven Wire Mesh

Twill woven wire mesh, also known as twill weave wire mesh, is a type of wire mesh that is characterized by its unique weave pattern. In twill weave, each weft wire passes alternatively over and under two or more warp wires, creating a diagonal pattern. This distinctive weave structure gives twill woven wire mesh several advantages and applications.

Here are some key features and applications of twill woven wire mesh:

Increased strength and stability: The twill weave pattern provides greater stability and strength compared to simple plain weave. The diagonal structure interlocks the wires, resulting in a more robust and durable mesh. This makes twill woven wire mesh suitable for applications that require resistance to heavy loads and mechanical stresses.

Enhanced filtration capabilities: Twill woven wire mesh offers excellent filtration properties. The diagonal weave pattern creates smaller and more uniform openings, allowing for precise filtration of fine particles. It is commonly used in industries such as pharmaceuticals, chemicals, and food processing for applications that require fine particle filtration.

Improved flow characteristics: The diagonal arrangement of wires in twill woven wire mesh enhances the flow characteristics of liquids or gases. It provides smoother and more uniform flow compared to plain weave meshes, making it suitable for applications that require controlled flow rates and distribution.

Versatile customization options: Twill woven wire mesh can be customized to meet specific application requirements. It is available in various materials, wire diameters, mesh counts, and opening sizes. This allows for flexibility in selecting the right mesh configuration for applications such as sieving, sorting, screening, and filtration.

Aesthetic appeal: Twill woven wire mesh can also serve decorative purposes due to its unique diagonal pattern. It is often used in architectural design, interior decoration, and artistic installations to add an aesthetically pleasing element to spaces.

Applications in various industries: Twill woven wire mesh finds applications in diverse industries, including automotive, aerospace, mining, chemical processing, oil and gas, and HVAC (heating, ventilation, and air conditioning) systems. It is used for purposes such as filtration, separation, reinforcement, safety screens, ventilation, and protection.


parameter

Dutch Weaving Filter Cloth, Twill Dutch Weave
MeshWire Dia. (MM)Normal Opening(μm)Material (AISI)
80mesh × 700mesh0.11x 0.0830304, 316, 316L
165mesh × 800mesh0.07 × 0.0520304, 316, 316L
165mesh × 1400mesh0.063 × 0.0415304, 316, 316L
200mesh × 600mesh0.05 × 0.03210304, 316, 316L
200mesh × 1400mesh0.05 × 0.03210304, 316, 316L
250mesh × 1600mesh0.05 × 0.0328304, 316, 316L
280mesh × 2200mesh0.05 × 0.0327304, 316, 316L
300mesh × 2100mesh0.036 × 0.0256316L
325mesh × 2300mesh0.035 × 0.0254316L
400mesh × 2800mesh0.030 × 0.0183316L

We can customized stainless steel wire mesh products
by your drawing and requirements

Our factory was established in 2008, it is now developed into a focus on production, development and sales of stainless steel wire mesh as one of modern science and technology enterprises
