Five-Layer Sintered Mesh

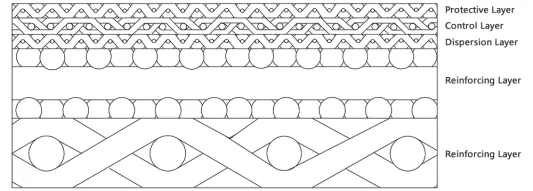

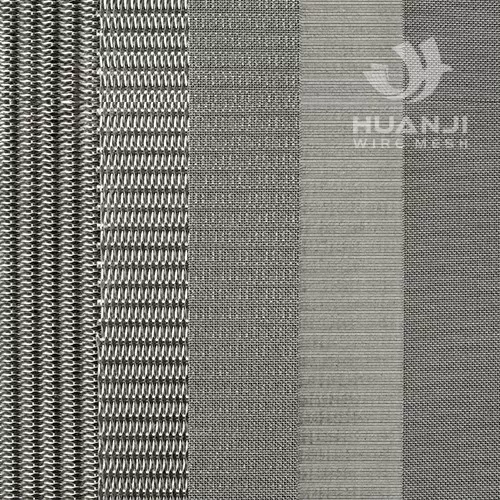

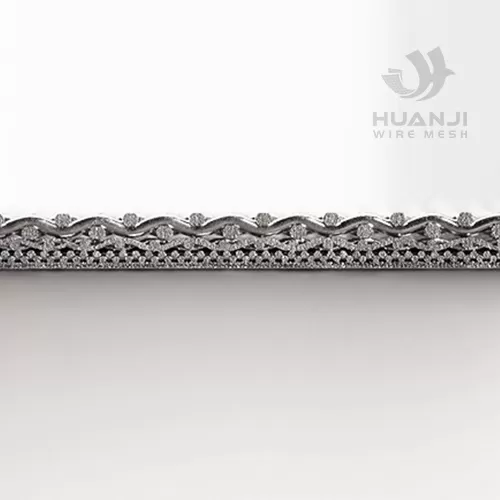

Five-layer sintered wire mesh is a standard and widely used type of sintered metal mesh. Sintering is a process that improves the characteristics of woven wire mesh by bonding the contact points of all the wires together to form a mesh whose wires are securely fused in place. By bonding the contact points of different wire meshes together, five-layer sintered mesh has become an integrated porous material with enhanced mechanical strength, high permeability and better structural integrity, because the sintering process remains the good filtration rating of the finest mesh layer, also the mechanical strength of the coarser support layers.

Inquire Now

Description

Material	Stainless steel 316 L, stainless steel 304, 304 L, 316, other materials can be customized.
Filtration accuracy	1 micron to 200 microns.
Heat resistance	600°C.
Standard thickness	1.7 mm.
Standard size	480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm, 600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm, 1000 mm × 1000 mm, 1200 mm × 1200 mm, other sizes can be designed as per customers' demand.
Maximum size	1219 mm × 1219 mm.
Type classification	Sintered dutch woven wire mesh, sintered square woven wire mesh.

parameter

Feature

Steady filter rating under high pressure.
High mechanical strength.
Easy to be welded, sheared, punched into various shapes.
Good capability of corrosion and abrasion resistance.
Easy to wash, it can be reused for many times.

Five-layer sintered dutch woven wire mesh specification
Code	Nominal filter rating (µm)	Structure	Overall thickness (mm)	Weight / sq.ft (kg)
MIC1L5	1	200 / 400 × 2800 / 200 / 12 × 64 / 64 × 12 100 / 400 × 2800 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC2L5	2	100 / 325 × 2300 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC5L5	5	100 / 200 × 1400 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC10L5	10	100 / 165 × 1400 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC15L5	15	100 / 165 × 1200 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC20L5	20	100 / 165 × 800 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC25L5	25	100 / 165 × 600 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC30L5	30	100 / 400 / 100 / 12 × 64 / 64 × 12 100 / 450 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC40L5	40	100 / 325 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC50L5	50	100 / 250 / 100 / 12 × 64 / 64 × 12	1.69926	1.1804
MIC75L5	75	100 / 200 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC100L5	100	100 / 150 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
MIC120L5	120	100 / 120 / 100 / 12 × 64 / 64 × 12	1.69926	0.2838
Note: 1. Porosity: 37%. 2. MIC: micron, L: layer.

Five-layer sintered square woven wire mesh
Code	Structure	Thickness (mm)	Weight (kg/m2)	Porosity (%)
FSWM - 1.9	30 / Filter layer / 60 / 20 / 16	1.9	5.3	52
FSWM - 2.5	80 / Filter layer / 30 / 10 / 8.5	2.5	8.8	55
Note: Filter rating varies from 2 µm to 200 µm, the filtration layer is selected as per customers' need.

Filtration property - five-layer sintered mesh
Type	Air permeability L/min.dm2	Rating micron (µm)	Bubble point pressure (Pa) 8%
FP-05	200	2.5 - 7.5	5000
FP-10	250	7.5 - 12.5	3700
FP-15	350	12.5 - 17.5	2600
FP-20	450	17.5 - 22.5	1950
FP-30	550	27.5 - 35	1230
FP-40	650	35 - 45	1020
FP-50	750	45 - 60	860
FP-70	900	60 - 80	690
Note: FP - filtration property, 05 - filter rating is five.

Application

Typical applications of five-layer sintered mesh include filtration of polymer, food, water, cosmetic, pharmacy, chemicals and hydraulic fuels. It is also used for fluidization of bulk materials in wagons, conveyors, driers, coolers and storage silos.
